NKBA kitchen & bath

Format

The National Kitchen & Bath Association sets a documentation standard for the rooms its members design. A submission is a single sheet that has to do three things at once: a dimensioned plan that reads against the NKBA planning rubric, an elevation that resolves the cabinet run and the appliance faces, and a perspective rendering that shows the room as it would be seen on entry. Plan, elevation, and rendering on the same sheet, at the same scale logic, as one drawing.

I produced two plates in Chief Architect during my time at Mesa College: one kitchen, one bath.

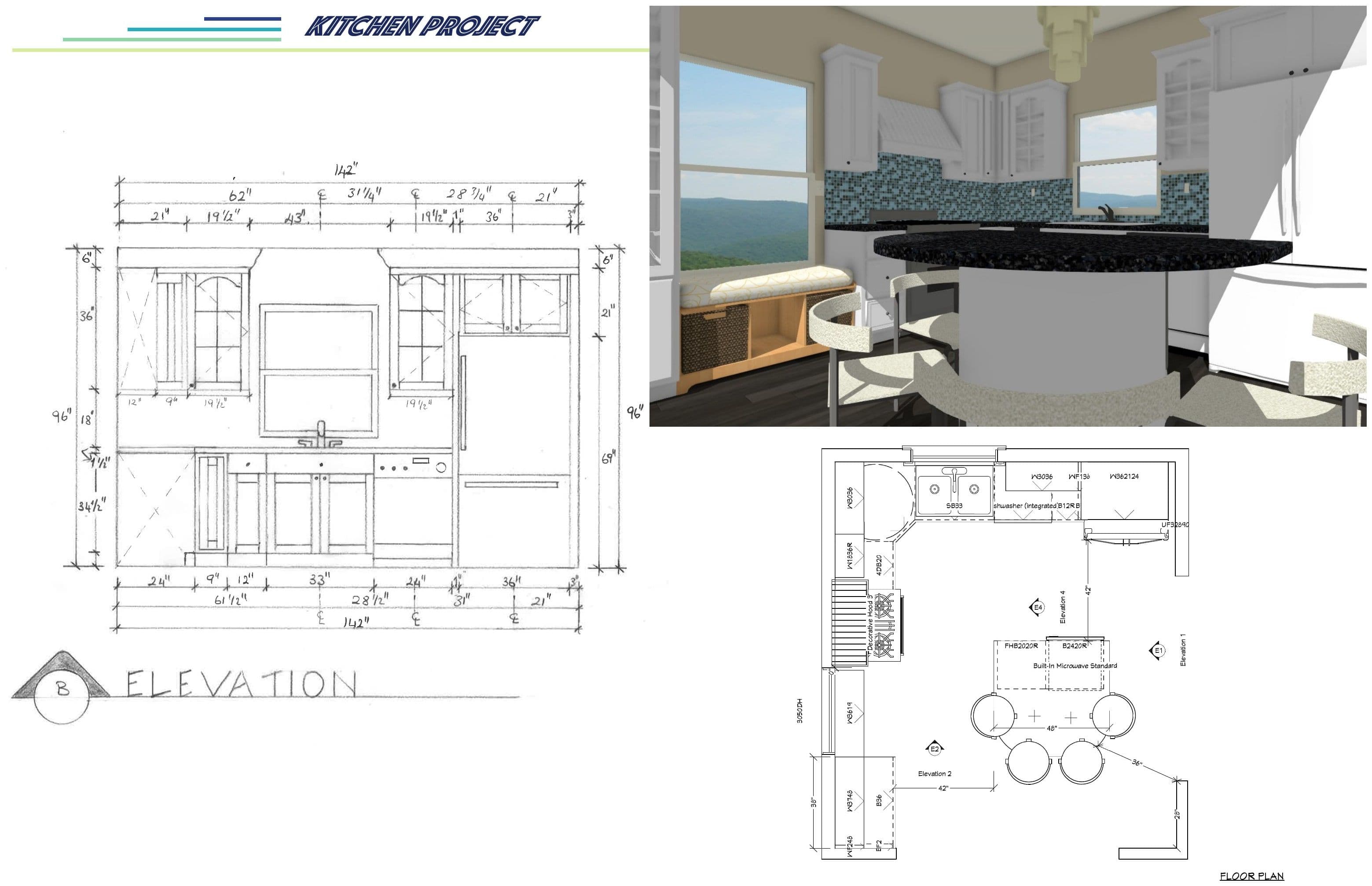

The kitchen plate

The kitchen plate is the larger of the two. The plan shows an L-shaped run with an island; I placed the appliances to keep the working triangle inside the NKBA clearance envelope. The elevation runs the perimeter cabinets at full height and resolves the hood as a separate volume above the range. The rendering sits in the upper register of the sheet, taken from a corner that lets the island read against the perimeter run.

The bath plate

The bath plate compresses the same logic into a smaller footprint. The plan resolves a vanity wall opposite a wet zone, with the tub and shower keyed to the NKBA bath clearances. The elevation works the vanity face and the mirror line. The rendering takes the room from the doorway, which is the hardest angle to draw because nothing hides.

Why these two

Chief Architect is the documentation tool residential designers use when the deliverable has to be construction-ready: cabinet legends, appliance cut-sheet placement, electrical and plumbing rough-in. Learning it inside the NKBA format meant my drawings had to satisfy both the software's geometry and an industry rubric written by people who build kitchens and baths for a living.

These two plates are the early version of a discipline that shows up later in my work. The El Cajon kitchen, drawn for a paying client almost a decade after these plates were produced, runs the same logic at full construction-set scale: plan, elevation, materials, appliance schedule, all keyed to one another. The NKBA sheet is where I learned to coordinate those views, and the El Cajon set is where I delivered them to a builder.
