Cathedral-ceiling kitchen, El Cajon

Brief

The existing kitchen in this El Cajon home was a closed galley: fifteen feet by fifteen feet, windowless on its long wall, separated from the dining and living rooms by partition walls and a soffit. The owners wanted the room opened to the great room beyond, the ceiling raised to follow the home's roofline, and a kitchen that could host without crowding the cook.

My site survey returned a constraint that shaped everything that followed: the bearing wall between the kitchen and the great room could come down, but only with new headers, posts, and footings sized in the construction set. Daylight could be added from above, but the existing roof framing had to be cut and re-framed for skylights without compromising the vault. From there my design problem was straightforward: figure out a plan that made the constraint feel like the point.

Decisions

I redrew the kitchen at thirty by twenty-two feet (twice the original area) by absorbing the great room's edge. Two waterfall islands replaced the single peninsula: a prep island close to the range, and a social island that sits proud of the line, one step into the great room. The two islands let the cook stay anchored at the range while seating, mixing, and homework happen six feet away.

The ceiling followed the roofline up into a vault. Two skylights, cut on either side of a structural ridge beam, drop midday light into the centre of the room. Recessed cans handle the periphery; two glass-globe pendants on slender stems mark the social island.

The decisions are read on the F3 proposal plan: twenty-three cabinets numbered to the legend; appliance positions keyed to the manufacturer cut sheets; the two islands centred on the new ceiling structure; and the existing perimeter wall preserved on the right to host the run of full-height pantry and refrigerator panels.

Material specification

The finish board reads as a single decision repeated:

• Cambria Swanbridge quartz counter: soft white veining, low contrast, used full-thickness on both islands as a waterfall.
• Carrara Venato marble hexagon mosaic: backsplash field, taken floor-to-cabinet behind the range and hood.
• KraftMaid Shaker 5 in white: flat-fronted shaker, no bevels, paint finish.
• Mullican Wexford 7" engineered planks: wide oak, light stain, run continuously from kitchen into the great room with no transition.
• Summer Street satin-brass pulls: long bar pulls on the islands, knobs on uppers.
• Kraus single-handle pull-down faucet, satin brass.
• Reese glass-globe pendants: three across the social island.

I used brass in three places only (pulls, faucet, pendants) and kept the same finish throughout. The rest is white, marble, and wood.

Appliance package

I matched the appliance specification to the cabinet legend before the cabinets were ordered:

• Thermador PRD486WIGU 48" range
• Thermador VCIN48GWS 48" wall hood
• Monogram 42" panel-ready refrigerator (faced with KraftMaid Shaker 5 to disappear into the cabinetry)
• Kohler Prolific K-5540 apron sink

I confirmed each piece against the M1 mechanical sheet (GFCI placement, 240V circuits at the range, exhaust routing) before the contractor opened a wall.

Construction

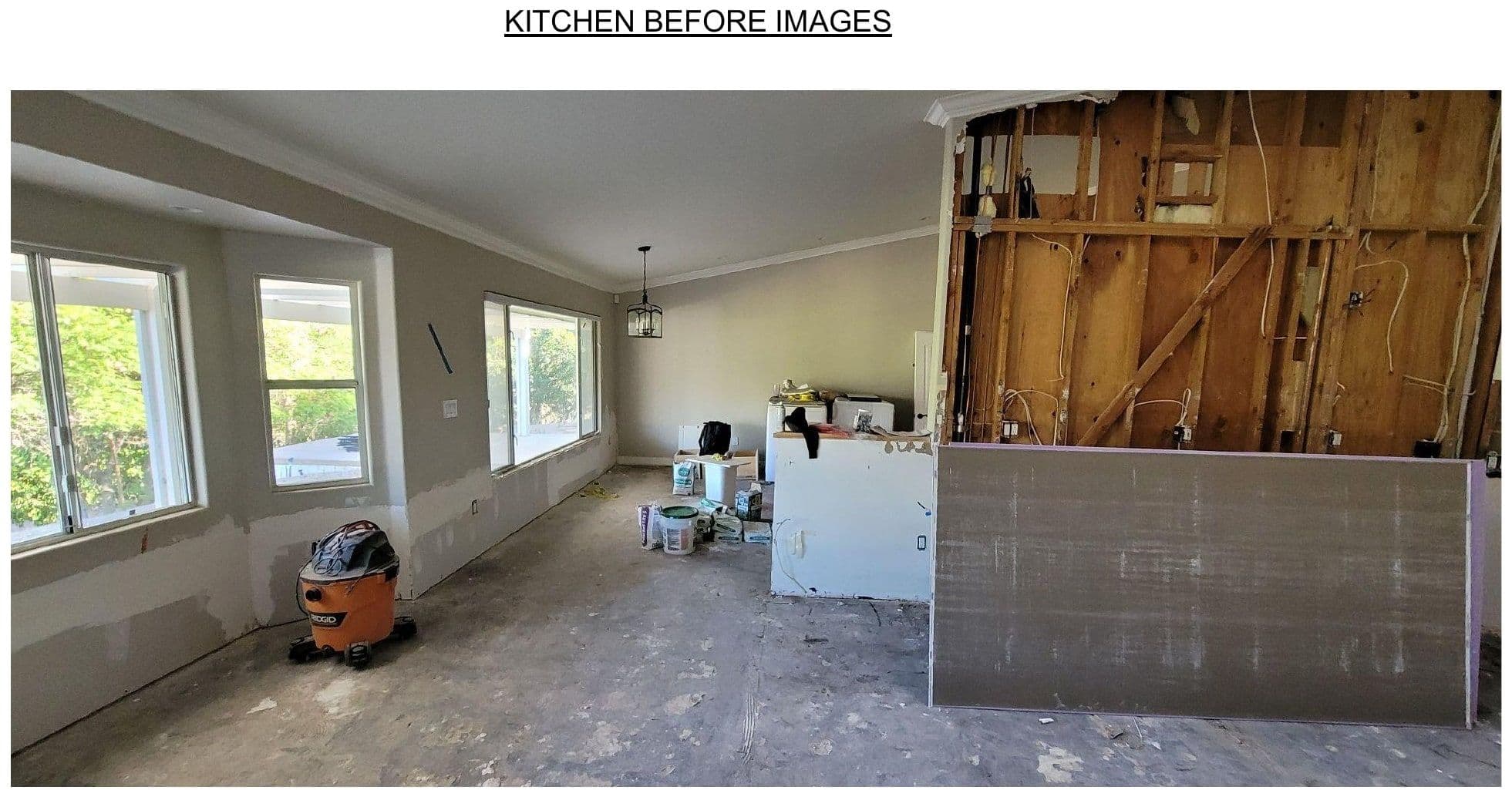

Demolition opened the room up into a single volume: walls to studs, ceiling drywall down, the original soffit cut out. The structural members visible in the framing photographs (the ridge and the new hip) are the headers required to take the bearing-wall load away.

The skylights were cut after the new framing was set so the openings could be flashed and curbed in the same pour. Sub-floor and plywood went down only after the hood ductwork was framed in.

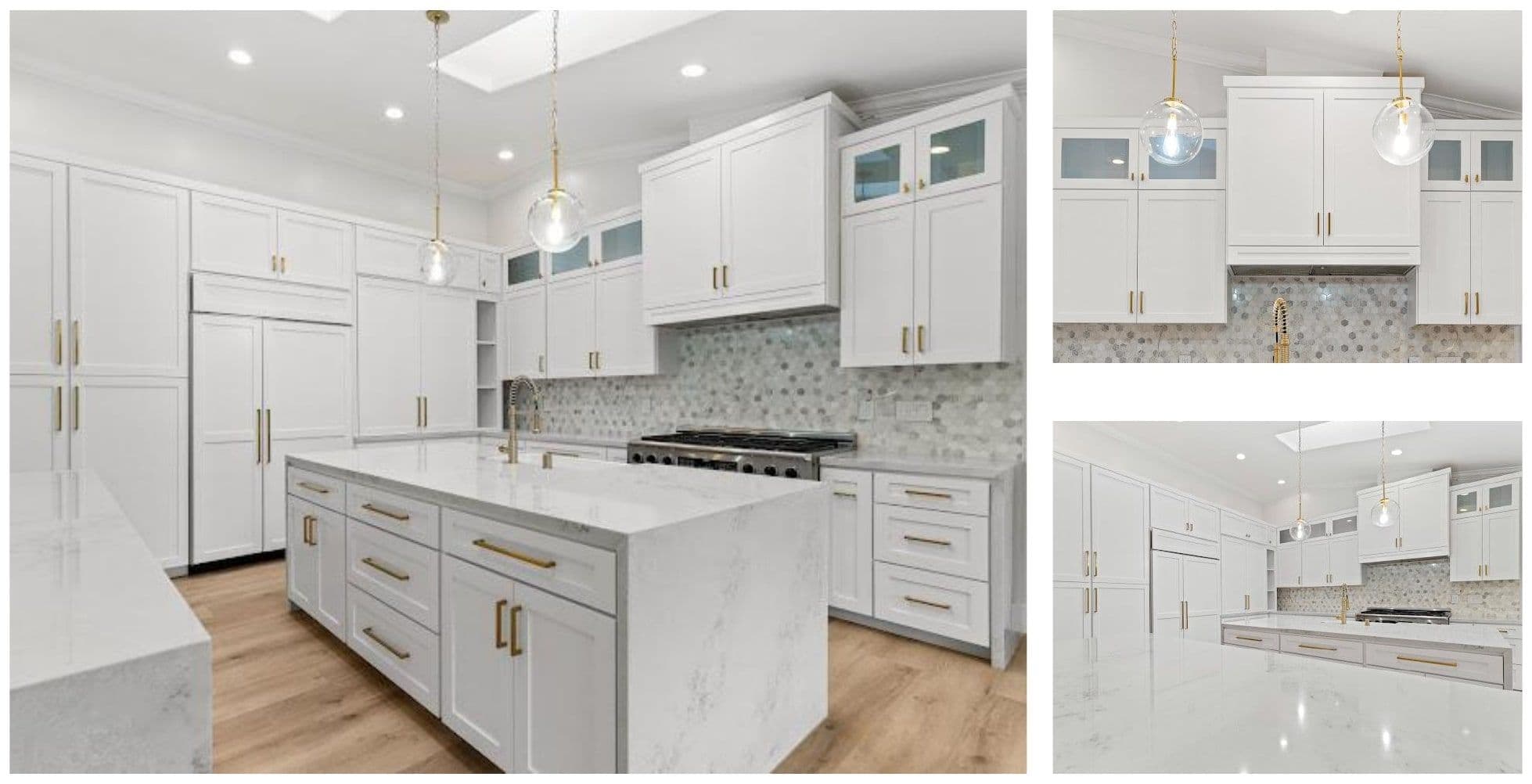

Built result

The kitchen built to the drawing. The pulls, faucet, and pendants are the same satin brass; the marble hex behind the range matches the swatch on the materials board; the floor runs continuously from the kitchen into the great room. The vault reads from the social island, the skylights drop light onto the prep island, and the run along the right wall hides the refrigerator behind a cabinet panel exactly as my elevation drew it.

The fireplace at the far edge of the great room, visible in the wide view, was already there before the project started. I planned the kitchen around it.
